- 7-bit LED display
- Supports 1 analog scale input, with a maximum of 12 load cells
- Certification: CPA 6000e, division up to 150,000
- Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
- Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
- Optional PLC communication interface
- PROFIBUS-DP (Siemens PLC) • CC-link (Mitsubishi PLC)
- PROFINET (dual LAN ports, built-in switch, Siemens PLC)
- EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
- scale x 1 4-20 mA (16-bit precision DAC) • scales x 2 4-20 mA (16-bit precision DAC)
- Optional I/O (input/output)
- In x 8 / OC Out x 12
- Multiple calibration modes
- Supports up to 5-point weight calibration • Calibration without weight
- Remote calibration via PLC communication interface
- Application supports
- Basic weighing version • Lower/upper limit level detection
- Supports dual-speed preset point control and 8 simple comparison outputs
- Built-in load cell safety barrier supports direct connection to scale platforms in Zone 1 and Zone 2
- Working power supply
- DC 24VDC, maximum power consumption of the complete machine is less than 6 W

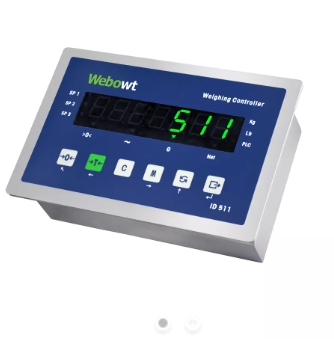

ID511XX N-type zone 2 Explosion-proof Weighing Indicator
- 7-bit LED display
- Supports 1 analog scale input, with a maximum of 12 load cells
- Certification: CPA 6000e, division up to 150,000
- Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
- Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
- Optional PLC communication interface
- PROFIBUS-DP (Siemens PLC) • CC-link (Mitsubishi PLC)
- PROFINET (dual LAN ports, built-in switch, Siemens PLC)
- EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
- scale x 1 4-20 mA (16-bit precision DAC) • scales x 2 4-20 mA (16-bit precision DAC)
- Optional I/O (input/output)
- In x 8 / OC Out x 12
- Multiple calibration modes
- Supports up to 5-point weight calibration • Calibration without weight
- Remote calibration via PLC communication interface
- Application supports
- Basic weighing version • Lower/upper limit level detection
- Supports dual-speed preset point control and 8 simple comparison outputs
- Built-in load cell safety barrier supports direct connection to scale platforms in Zone 1 and Zone 2
- Working power supply
- DC 24VDC, maximum power consumption of the complete machine is less than 6 W
