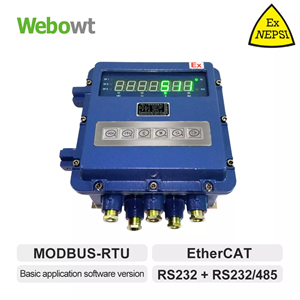

7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells

Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
Have got OIML & CE certificates
Standard configuration: serial ports x 2 RS232 + RS232/485,or serial ports x 2 RS232 + RS485 with one LAN port
MODBUS-RTU and MODBUS-TCP are supported as standard (only LAN port version is supported)

PLC communication interface option

• PROFIBUS-DP (Siemens PLC)
• CC-link (Mitsubishi PLC)
• PROFINET (dual LAN ports, built-in switch, Siemens PLC)
• EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
• Scale x 1 4-20 mA (16-bit precision DAC)
• Scales x 2 4-20 mA (16-bit precision DAC)

Multiple calibration modes

• Supports up to 5-point weight calibration
• Calibration without weights
• Remote calibration through PLC communication interface
• Calibration with material

Main applications:

• Basic weighing version
• Supports dual-speed preset point control and 8 simple comparison outputs
• Lower/upper limit material level detection
• Supports AC 85-264VAC or DC 24VDC working power supply, and the maximum power consumption of the complete machine is < 6W;
• Ex-proof certification for indicators and explosion proof housing
• Built-in six-wire load cell safety barrier
